Applications

Wood:



Objects with threaded inserts, M10 sighted and M6 blind. Threaded pin and connector

Objects connected and clamped

Objects of wood connected by threaded inserts. 2x10M in object 1, 2x6M (blind) in object 2.



Spice plates of cross wood (both sides) connected by claw nuts (10M and 6M) .







Panels:

Panels of particle board connected with threaded inserts

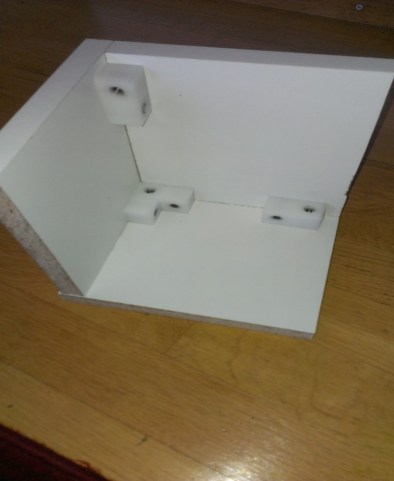

Panels of particle board connected by plastic corner blocks with tapped M10 fixing points, and M6 inserts in panels

Metal/Metal:

Metal bars connected, tapped M10 hole linked to blind tapped M6 hole

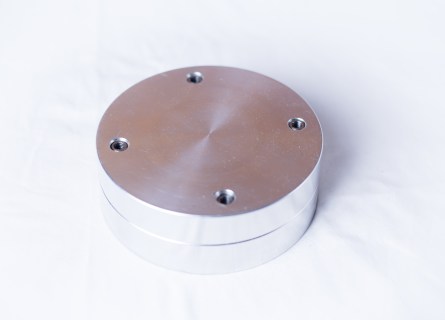

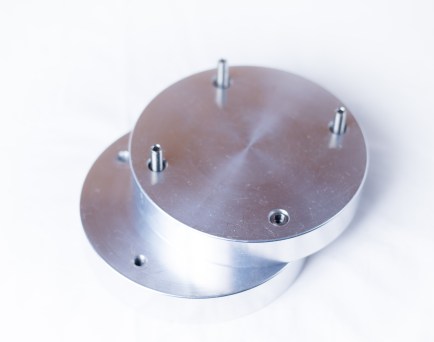

Aluminum parts connected. Tapped M10 holes linked to blind tapped M6 holes



Cross Dowel:

Object of wood linked by cross dowel and threaded insert. Improved rigidity due to load distribution and reduced bolt-hole clearance

Wood/Metal:

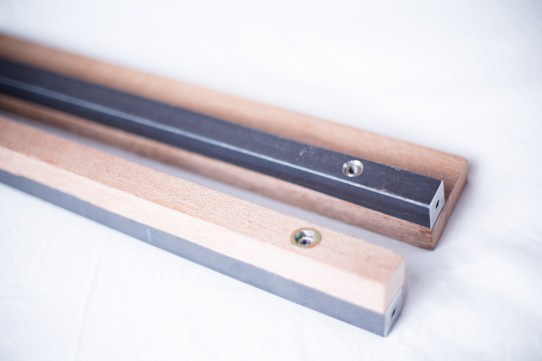

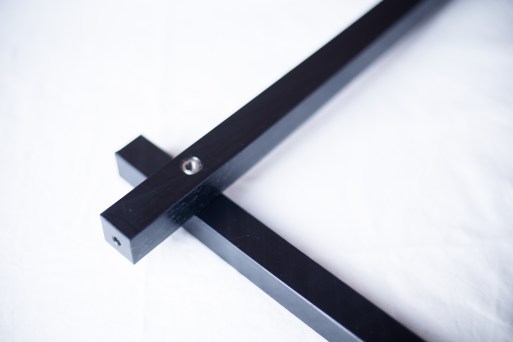

Above: Metal bar with tapped (M10) fastened to wood bar with blind insert (M6)  Below:Wood bar with insert (M10) fastened to metal bar with blind tapped M6







Composite:

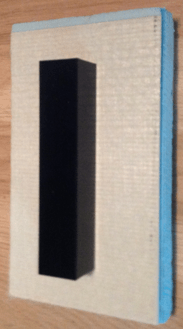

Composite panels connected by glued-on inserts. M10 upper panel. M6 lower panel. Load distribution of fasteners in both panels.

Composite panel with glued-on M10 fasteners connected to M6 tapped blind fixing points of a plastic object.

Aluminum profiles:

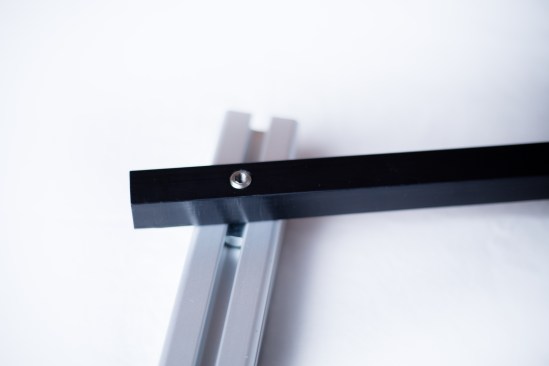

Plastic object with tapped M10 fixing point, Al-profile with slide nut (M6), connector and threaded pin

Plastic object connected. The connection is very stable due to the fact that clamping forces are created between nut and profile and also between the plastic object and the profile. By relaxing the tension the object can rotate and slide.

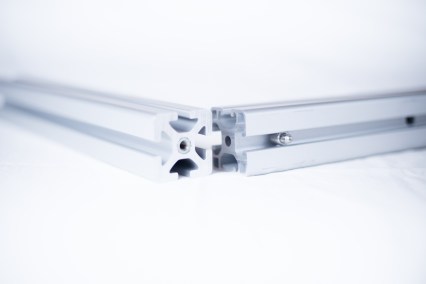

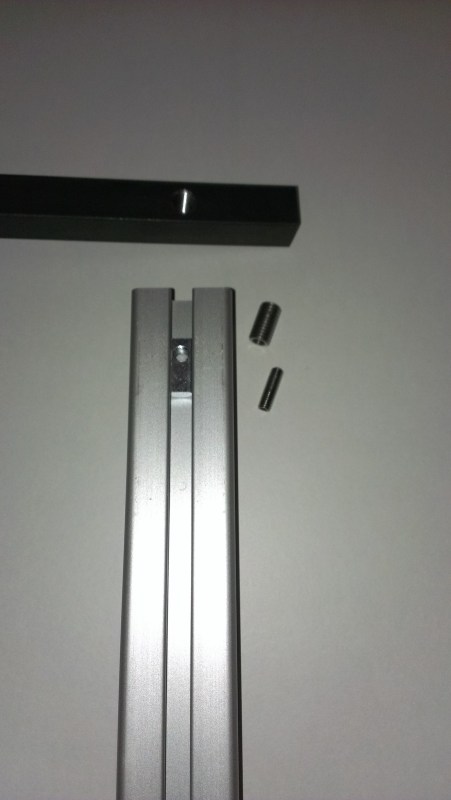

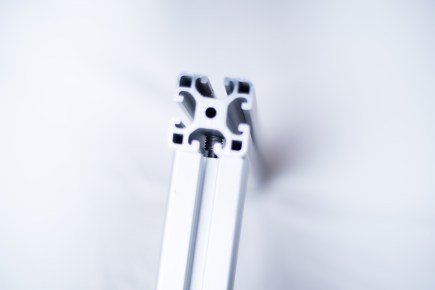

Connecting profiles, profile 1 with central insert (M6). Profile 2 with tapped hole (M10), with connector and threaded bolt inserted.



Profile 1 and profile 2 connected

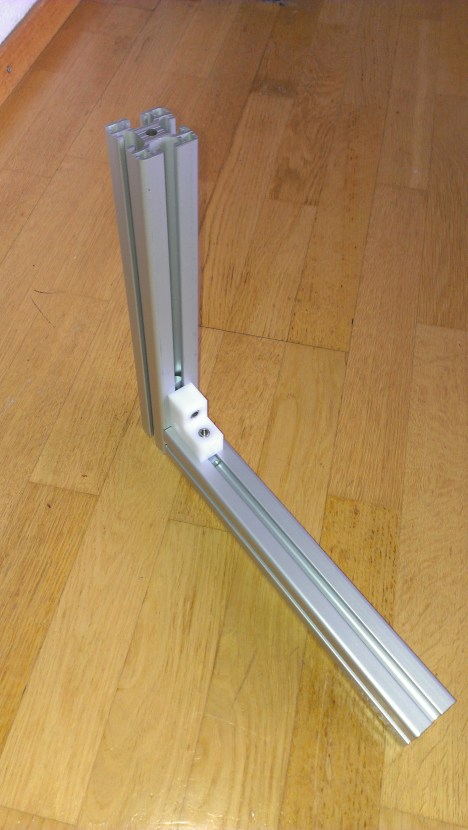

Plastic corner block with tapped 10 holes, connected to slide nuts

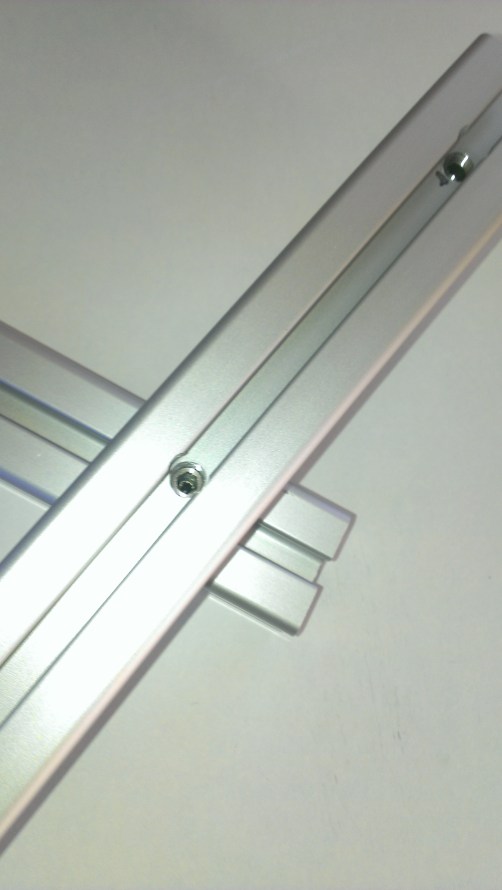

Profiles connected side by side. Tapped M10 fastening point with connector in profile 1, linked to slide nut (M6) in profile 2. Profile 2 can be positioned and fastened at any position and angle.

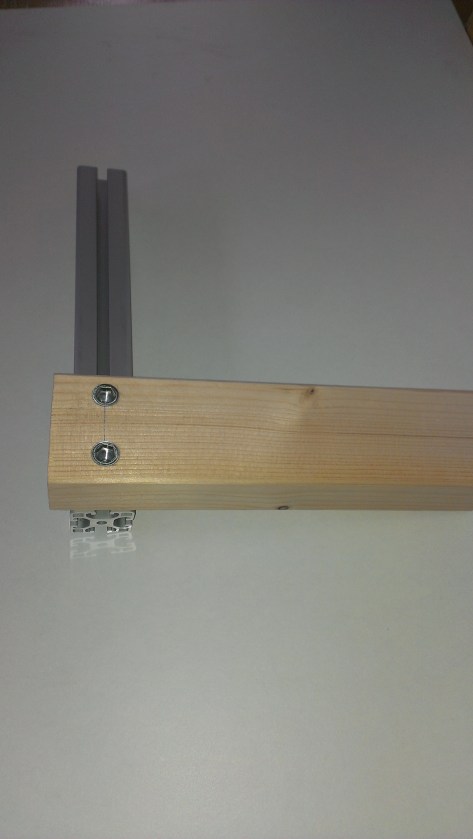

Wood object with threaded inserts (M10) fastened to slide nuts (M6) in profile

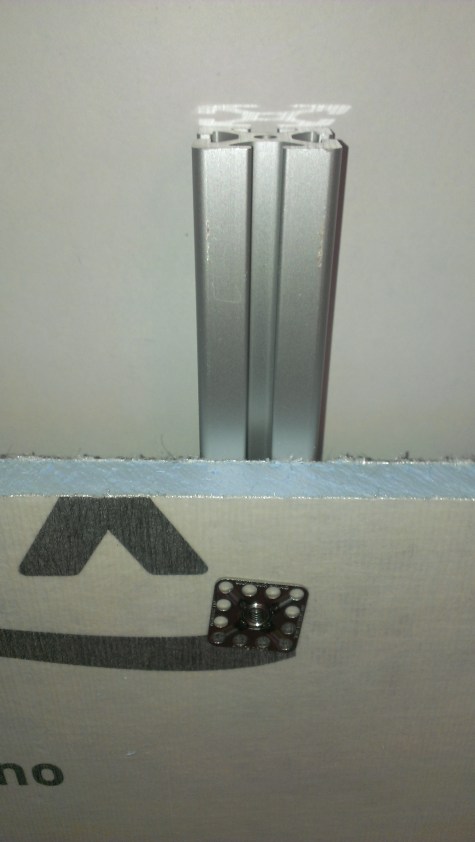

Composite panel with glued on BigHead collar fastener (M10) fastened to slide nut (M6) in profile
