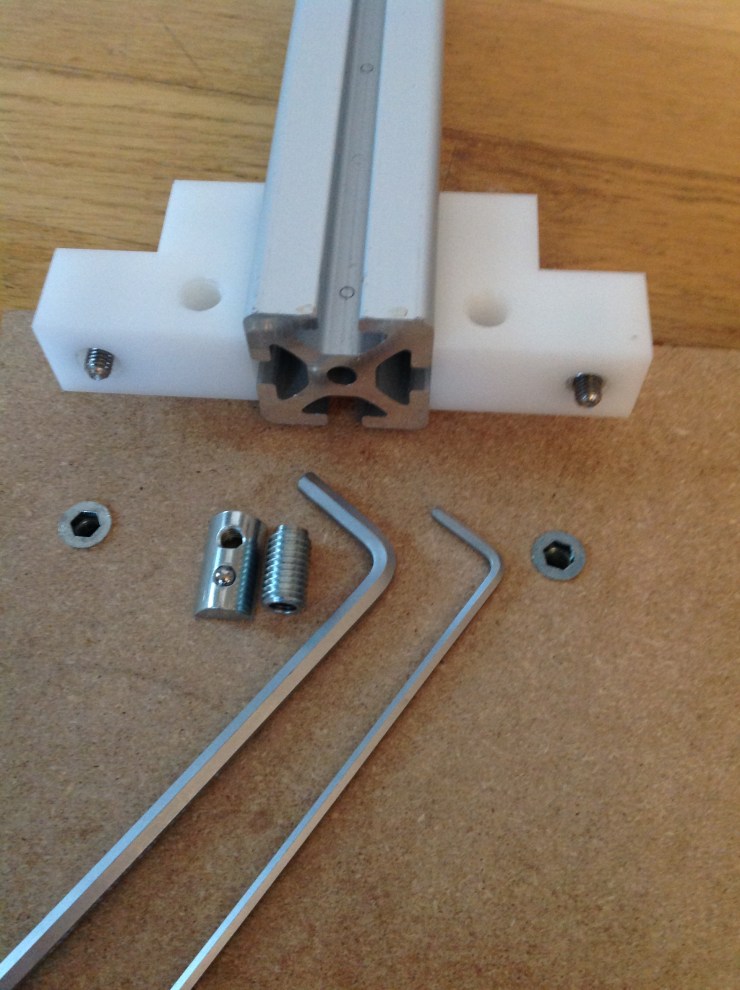

- Plastic object with tapped M10 fixing point, Al-profile with slide nut (M6), connector and threaded pin
- Plastic object connected. The connection is very stable due to the fact that clamping forces are created between nut and profile and also between the plastic object and the profile. By relaxing the tension the object can rotate and slide.
- Connecting profiles, profile 1 with central insert (M6). Profile 2 with tapped hole (M10), with connector and threaded bolt inserted.
- Profile 1 and profile 2 connected
- Plastic corner block with tapped 10 holes, connected to slide nuts
- Profiles connected side by side. Tapped M10 fastening point with connector in profile 1, linked to slide nut (M6) in profile 2. Profile 2 can be positioned and fastened at any position and angle.
- Wood object with threaded inserts (M10) fastened to slide nuts (M6) in profile
- Composite panel with glued on BigHead collar fastener (M10) fastened to slide nut (M6) in profile
